The MAG.EX integrates spindle speed and power with a machine platform that provides rapid precision-contouring capability while maximizing the percentage of the total time the spindle is cutting. The number of process variables related to the part production and the number of setups are both minimized.

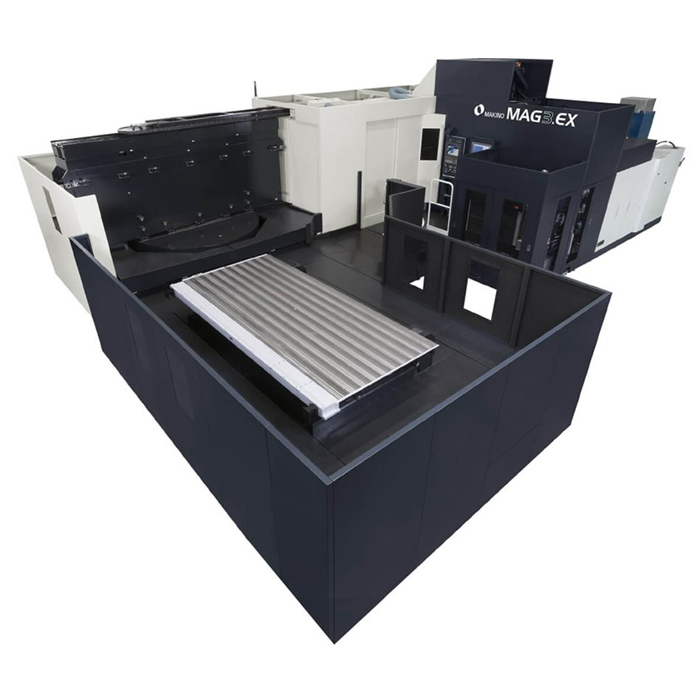

The MAG3.EX has an industry-leading spindle design to ensure high metal-removal rates. The MAG3.EX can also be configured with an automatic pallet transfer and storage system in Makino’s highly flexible MMC system for extended periods of unattended operation.
MAG3.EX spindle speed and power with a machine platform that provides rapid precision-contouring capability while maximizing the percentage of the total time the spindle is cutting. The number of process variables related to the part production and the number of setups are both minimized.
Standard Specifications
Pallet
3,500 x 1,500 mm
X Axis
4,000 mm
Y Axis
1,500 mm
Z Axis
1,000 mm
A Axis
± 110°
B Axis
None
C Axis
360°
Spindle RPM
33,000 rpm - 80 kW
Rapid Traverse
25,400 mm/min
Cutting Feedrate
25,400 mm/min
Maximum Workpiece
4,000 x 1,500 x 500 mm
Maximum Payload
3,000 kg
ATC Capacity
120 (180)
Tool to Tool
8.5 sec
Chip to Chip
15 sec
Maximum Tool Diameter
90 mm
Maximum Tool Weight
8 kg
